Emona Reservoir

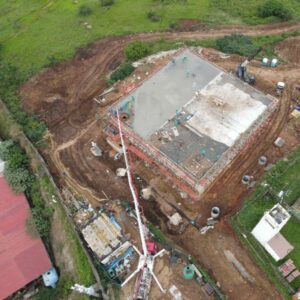

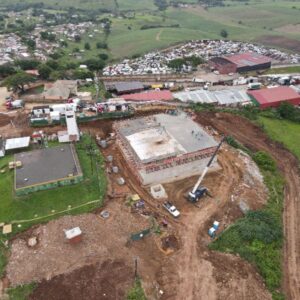

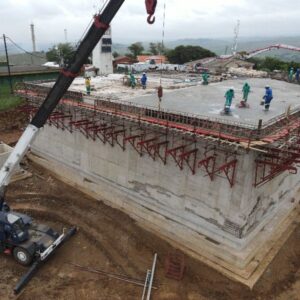

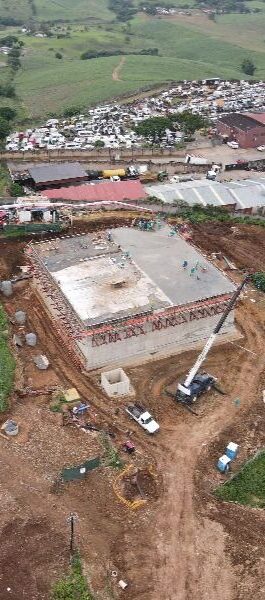

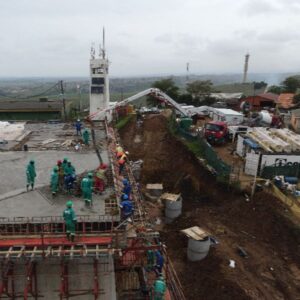

Design and Construction Supervision of a 5ML Reinforced Concrete potable water reservoir, 15kl elevated steel tank and submersible pump 2km of DN300 continuously welded steel rising main, pump station upgrade, inlet and outlet works, overflow and scour works, bulk earthworks and removal of existing pipework. The installation of all control valves, interconnecting pipe work, metering, telemetry, buildings & chambers, fencing and associated ancillary works which includes the construction of the access road.
Client: eThekwini Municipality
Value: R 45 million
Key features:
- 5 Mℓ reinforced concrete reservoir together with inlet, outlet pipelines, control valves and metering
- 15KL Elevated Tank
- 2 x DN150 inlet control valve chamber
- 2 x DN200 outlet pipelines to tie into the existing DN200 bulk lines.
- 2km of DN300 continuously welded steel rising main
- The construction of two DN200 outlet pipelines that will tie into the existing DN200 bulk lines.
Awards: N/A
Job created: 20 Jobs (16 Man and 4 Women)
Women employed: 4 Women
Youth employed:
15 young people were employed.
In addition, 4 Civil Engineering Trainees were trained for 12months
